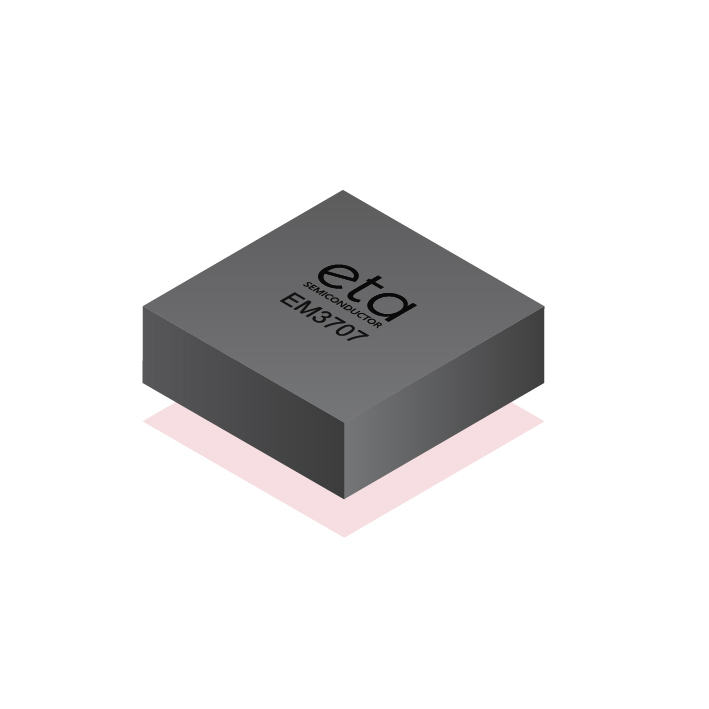

The EM3707/A/B is a high-efficiency, step-down buck converter module with built-in power MOSFETs, inductor and capacitor. The integrated structure simplifies the power system design. EM3707/EM3707T features 450nA ultra-low quiescent current, can provide programmable output voltages from 1.2V to 3.3V, and capable to deliver up to 1A of output current. EM37...

ETA9098 is a five-channel PMU that includes a wide input, high efficiency synchronous buck converter, a low startup, high efficiency synchronous boost converter, a high voltage output clamper, a super-capacitor charger and a high voltage low drop diode.

The ETA1611 is a high efficiency step-up converter with an internally integrated 22V power MOSEFT. It runs with an optimal 1MHz frequency that enables the use of small external components while still providing the best efficiency. It can drive up to 2A output current.

ETA2237 is a wide input range, high efficiency and high frequency DC to DC step-down switching regulator, capable of delivering up to 6A output current. It adopts an adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output varies from light load to heavy load.

ETA1753 is a wide input range, high-efficiency and 1MHz frequency DC-to-DC step-down switching regulator, capable of delivering up to 3A of output current. It adopts an Adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output varies from light load to heavy load.

The ETA7017/A is a small, low RDSON switch with controlled turn on. The device contains a PMOS that can operate over an input voltage range of 1.4V to 5.5V. The switch is controlled by an external logic pin, which is an active high enable.

ETA7015 is an ultra-low Ron load switch capable of passing current up to 5A. It employs a unique 2-NMOS switches topology, that an ultra-low on resistance (13mohm) is achieved by connecting the 2 NMOS in parallel (Low Ron mode), or a 55mohm switch with on body diode effect is achieved by connecting the 2 NMOS in series (Reverse Blocking mode).

ETA6281 is a load switch which provides full protection to systems and loads which may encounter large current conditions. ETA6281 offers a 70mΩ current-limited switch which can operate over an input voltage range of 2.1-6V. The current limit can be externally programmed by a precision resistor, ranging from 75mA to 2.2A.

The ETA6280 is a load switch which provides full protection to systems and loads which may encounter large current conditions. ETA6280 offers a 70mΩ current-limited switch which can operate over an input voltage range of 2.1-6V. The current limit can be externally programmed by a precision resistor, ranging from 75mA to 2.2A.

ETA6033 is a low side load switch that is capable of providing a low resistance path between negative load terminal and the ground terminal and limits the load current up to 3.5A.
